WDE 200

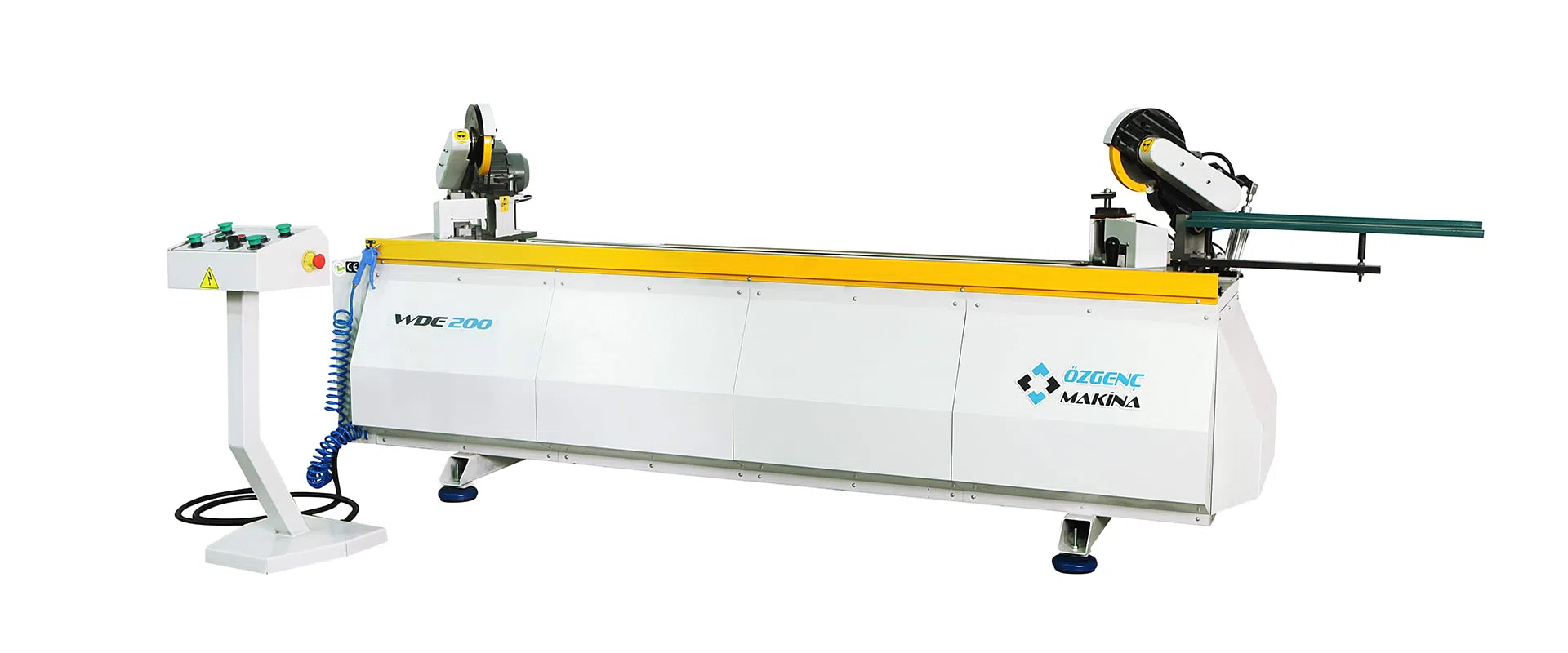

Double Head Wood Profile 45° Cutting and Dovetail Tenon Machine

Double Head Wood Profile 45° Cutting and Dovetail Tenon Machine

Description

  • The machine clamps the workpiece securely with pressure holders

  • The cutting saw and the drilling unit have pneumatic (automatic) motion

  • The left cutting group is fixed and the right cutting group is movable

  • The movable group can move easily thanks to linear slides with a lubrication unit

  • Profile support unit on the movable cutting head

  • Fast and high-precision movement system with servo motor

  • Touch-screen control panel

  • Multiple language support

  • Ø200 mm diamond saw

  • The saw guards move in a mechanically compatible way with the saw during cutting

  • Specially designed dust suction outlets (Ø37 mm)

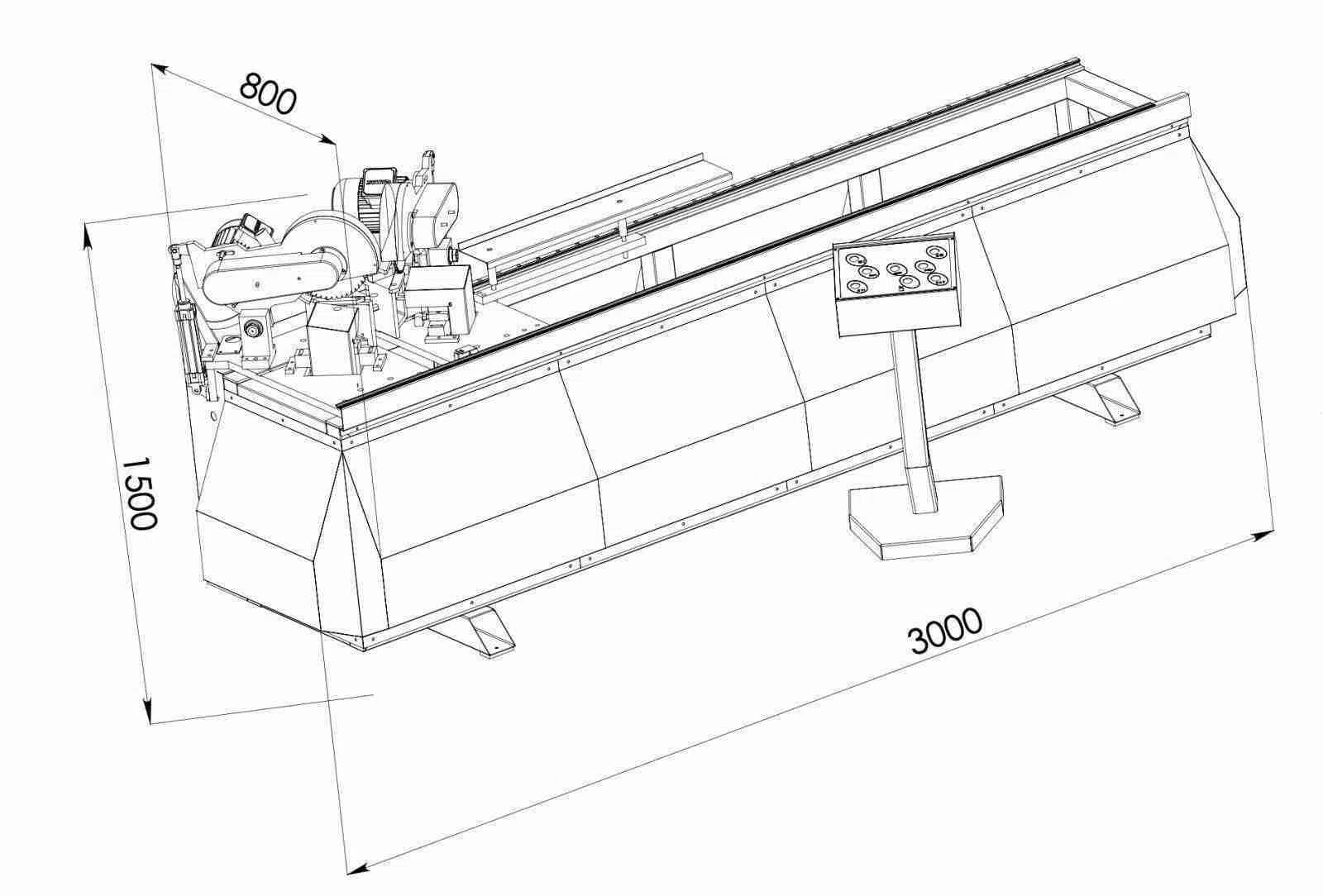

Diagrams

WDE 200

WDE 200

Specifications

Machine

Machine Weight280 kg
Voltage400 V
Total Power2.8 kW
Operating Pressure6 - 8 bar
Air Consumption10 l/cycle

Working Capacity

Max. Height (H)30 mm
Max. Width (W)60 mm
Min. / Max. Profile Cutting Length210 - 2980 mm
Cutting Angle45°

Tooling

Saw Blade (2)Ø200 mm / 1.1 kW
