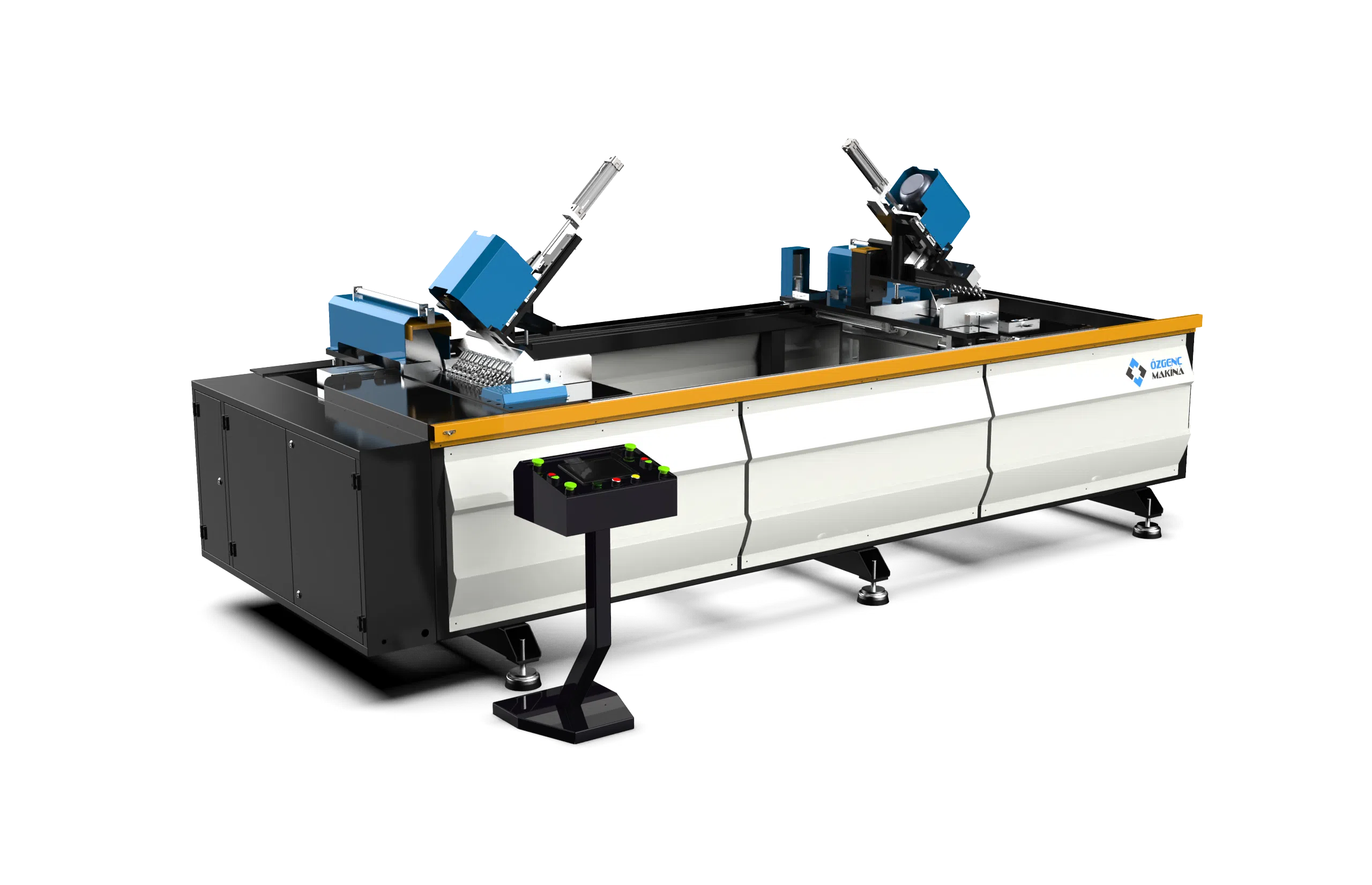

Double Miter 45° / 90° Twin Saw with 12-Pin Hole Drilling Unit

Description
The left unit is fixed and the right unit is movable
The machine clamps the workpiece securely with pneumatic pressure holders
The cutting saw and the drilling group move pneumatically (automatically)
It moves easily thanks to the linear skid unit with a lubrication system
Mitring at 45° and 90° can be performed on the sized frame
45° frame joining holes can be drilled
It features double frame clamping
It can cut frames with architraves
Drilling unit comprising a magazine with a capacity of 12 cutting tools
Both cutting heads tilt automatically to 45° and 90°
The saw guards operate automatically with the pneumatic system
Chip vacuum outlets (Ø100 mm)
The right unit offers convenience in cutting thanks to its mechanical fixing (manual version)
Piece size can be adjusted easily and precisely with the precision ruler (manual version)
Option: fast and high-precision movement system with servo motor and automatic sizing (DIGI option)
Option: ability to drill joining holes for frames with architraves (WD 450RD)
Documents

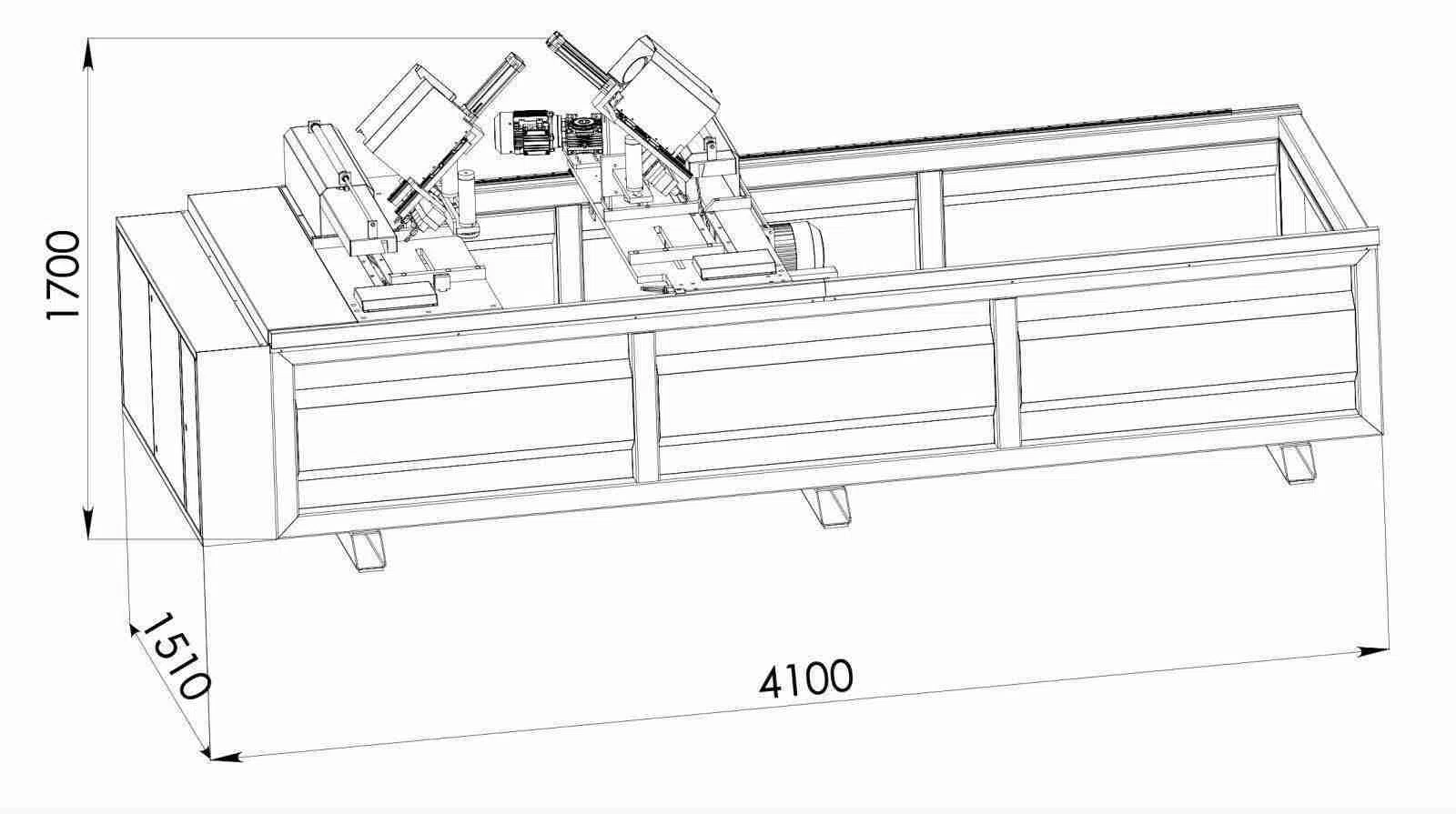

Diagrams

WD 450
Specifications
Machine
| Machine Weight | 1020 kg |
| Voltage | 400 V |
| Total Power | 5.1 kW |
| Operating Pressure | 6 - 8 bar |
| Air Consumption | 97 l/cycle |
Working Capacity
| Min. / Max. Profile Cutting Length | 670 - 2800 mm |
| Cutting Angle | 45° - 90° |
Tooling
| Drilling Tool | Ø10 x 52 / Ø16 x 85 mm / 1.1 kW / 2,880 rpm |
| Saw Blade | Ø450 / 500 mm / 1.5 kW / 2,828 rpm |
