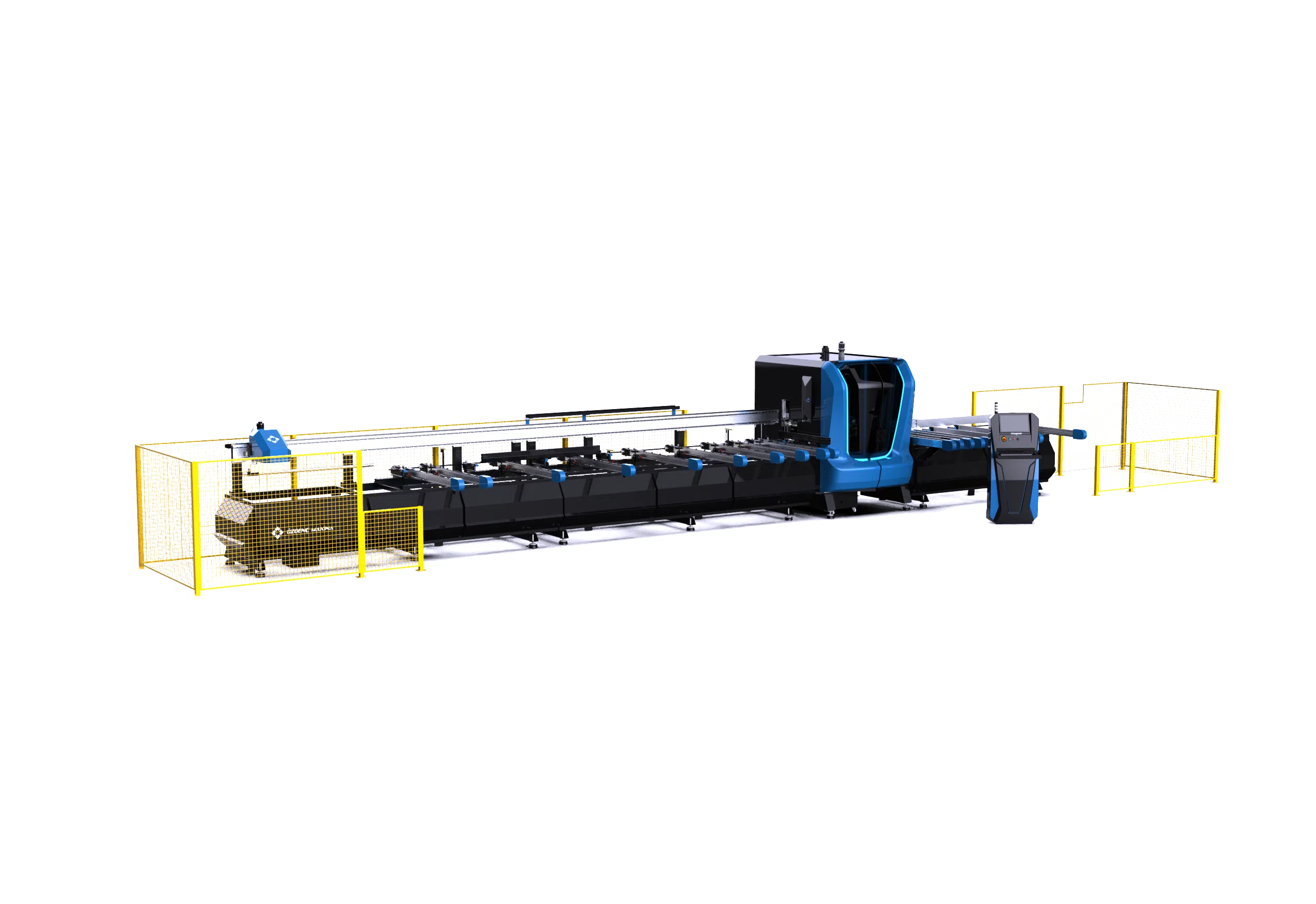

PVC Profile Machining and Cutting Center

• Compatible with all window and door production and optimization software.
• The milling unit machines the lock cylinder slot in a single operation.
• The milling unit machines the handle slot in a single operation.
• The gripper arm can move along 3 axes.
• Automatic profile gripping.
• Thanks to automatic profile length detection, the gripper arm grips the profile without any loss of time.
• Profiles between 500 mm and 6500 mm can be loaded into the profile feeding unit.
• Windows-based operating system with a 21.5” display.
• User-friendly interface.
• Profiles and machining operations can be easily defined using TURBOCAM software.
• Optional, custom-configurable barcode printing unit.
• The pressure levels of the clamping groups in the machining centre can be adjusted.
• 9 high-speed milling motors.
• The Ø600 mm saw performs cuts at angles between 35° and 145° with servo-axis control.
• Automatic lubrication unit.
• Waste chip conveyor.
